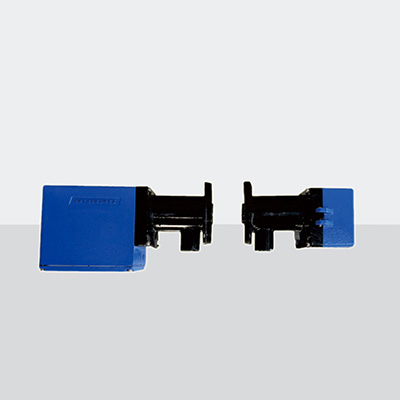

Optical turbidimeter D-R216
Optical turbidimeter D-R216

Optical turbidimeter D-R216

    Using the transparency ratio principle, the transmitter is installed opposite the reflector. Using the principle of automatic alignment, the test light passes through the test channel. The light from the transmitter passes through the test channel for the first time and is transmitted to the reflector, and then reflects the light and crosses the test channel again. The reduction of light dispersion caused by smoke is proportional to the smoke concentration. The light spot transmitted to the reflector is larger than the reflective part, which can be easily debugged and avoid test errors caused by thermal change of the probe and reflector surface.
24-hour free hotline:
  • Characteristic
  • Application
  • Authentication
  • System components
  • Technical parameter
  • Download

lDirectly installed on the flue to measure the concentration of flue gas and dust

lDouble case installation, no need to contact with smoke

lIntegrated design: optical components such as transmitter and receiver are installed in the same housing

lIt is installed by an external application junction box, with its own local junction box, which is convenient for installation

lIt is protected by the air cleaning unit and has a long maintenance cycle


lRefinery and petrochemical industry

lGlass factory, wood and chemical industry

lGarbage Zanhua workshop and soot plant

lDust filtering workshop


lPassed the China National Metrology Certification
